1. SUMMARY
This proposal presents a fully integrated containerized energy solution combining a 100kWp photovoltaic (PV) system with a 522kWh battery energy storage system (BESS). Designed for seamless deployment and optimal performance, this solution delivers reliable, clean energy with advanced monitoring, control, and safety features. The system is housed in a single shipping container for minimal on-site installation requirements, making it ideal for commercial, industrial, and remote applications where grid stability and energy independence are critical priorities.
Our integrated solution incorporates industry-leading components, advanced thermal management, comprehensive safety systems, and sophisticated data monitoring capabilities. Compliant with all major international standards, this system provides exceptional energy efficiency, reliability, and longevity with a minimum 10-year warranty on all core components.
2. Core System Configuration

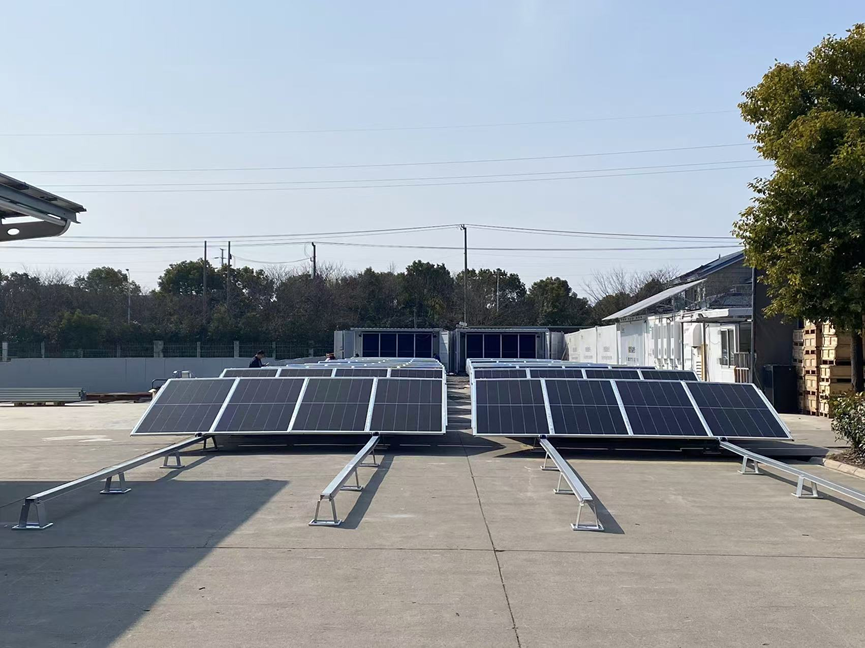

• 100kWp high-efficiency photovoltaic array with deployable mounting system
• 522kWh lithium-ion battery energy storage system with advanced BMS
• Integrated hybrid inverter system (single-phase & 3-phase output capability)
• All components housed in a single weatherproof shipping container
• Pre-wired, pre-commissioned system for minimal on-site installation
3. TECHNICAL SPECIFICATIONS
3.1 Battery Energy Storage System (BESS) - 522kWh
Parameter | Specification |
Nominal Capacity | 522 kWh |
Output Configuration | Single-phase + 3-phase output sockets |
Round-trip Efficiency | ≥92% at nominal load |
Depth of Discharge (DoD) | Configurable up to 90% (user-adjustable) |
Operating Temperature | -10°C to +55°C (ambient) |
Thermal Management | Integrated HVAC + liquid cooling system |
Fire Suppression | Active fire suppression system |
Explosion Protection | NFPA 68/855 compliant venting/deflagration panels |
Emergency Stop | Hardwired physical E-Stop (DC contactor bypass) |
Communication | Modbus TCP (built-in) |
Certifications | UL 9540/9540A, IEC 62619, UN 38.3, IEC 61000 |
BMS Features | Cell voltage/temperature monitoring, active balancing |
GPS Functionality | Built-in GPS module (Modbus accessible) |
External Display | Integrated status display panel (container exterior) |
3.2 Photovoltaic System - 100kWp
Parameter | Specification |
Nominal Power | 100 kWp (peak) |
Panel Technology | High-efficiency monocrystalline PERC |
Panel Certifications | IEC 61215, IEC 61730 |
Mounting System | Deployable, pre-assembled mounting structure |
RSD Controllers | Integrated Rapid Shutdown controllers |
Inverter Type | Hybrid string inverter with MPPT |
String Monitoring | Modbus TCP enabled string-level monitoring |
Energy Measurement | Class 0.5 accuracy meters (±0.5% precision) |
Cumulative Yield | Non-resettable accumulator (lifetime tracking) |
Key Metrics | Real-time power, daily/cumulative yield, temperature, efficiency |
Digital Identification | Unique serial number for each panel/inverter/BMS |
Data Logging | 30 days @ 15-minute intervals (buffered) |
Dust Protection | Optimized for dusty tropical environments |
3.3 HVAC & Environmental Control System
The integrated HVAC system is specifically engineered for optimal performance in challenging tropical climates, combining forced air cooling with liquid cooling technology to maintain ideal operating temperatures for all system components.
• High-capacity washable dust filters (G4/F7 grade) on all air intakes
• Dual cooling technology (HVAC + liquid cooling) for extreme temperature conditions
• Precision temperature control (maintains 20-25°C internal temperature)
• Energy-efficient operation with variable speed fans
• Integrated filter status monitoring and maintenance alerts
• Specialized Harmattan Maintenance Protocol included in O&M manual
4. Key Competitive Advantages
Space Optimization & Rapid Deployment
• All-in-one containerized design eliminates complex on-site assembly
• Pre-connected components reduce installation time by up to 80% compared to traditional systems
• Compact footprint maximizes usable space at installation site
Enhanced Safety & Compliance
• Active fire suppression system with NFPA 68/855 compliant explosion venting panels
• Physical hardwired E-Stop bypassing software for emergency situations
• Full compliance with UL 9540/9540A, IEC 62619, UN 38.3, IEC 61000 standards
• Secure Boot and TPM for enhanced cybersecurity protection
Remote Access & Integration Capabilities
• Industrial IoT gateway with VPN access (Teltonika/Moxa/Advantech compatible)
• Local API access (no cloud dependency) for direct system integration
• GPS module for geolocation verification of energy production
• Write access to system software for customized DoD and operational parameters
Long-term Reliability & Support
• Minimum 10-year warranty on all core components (extended warranty options available)
• Comprehensive preventative and annual maintenance protocols
• Strategic spare parts availability and rapid response service
• Flexible service agreements with remote monitoring options
5. Key Application Scenarios
Commercial & Industrial Facilities
• Peak shaving and demand charge management
• Grid backup and power quality improvement
• Energy cost reduction and budget predictability
Remote Off-Grid Installations
• Reliable power for mining, telecom, and agricultural operations
• Elimination of diesel generator dependency
• Reduced operational costs and carbon footprint
Utility-Scale Microgrids
• Grid stabilization and renewable energy integration
• Load management and peak capacity support
• Modular expansion capability for growing energy needs
Healthcare & Critical Infrastructure
• Uninterruptible power supply for critical operations
• Independent power source during grid outages
• Compliance with medical equipment power requirements
6. CONCLUSION
The 100kWp PV + 522kWh BESS integrated containerized energy solution represents the state-of-the-art in renewable energy storage technology. This system combines high performance, advanced safety features, comprehensive monitoring capabilities, and seamless integration potential with minimal installation requirements.
Designed for compliance with international standards and regional regulatory requirements, this system delivers reliable, clean energy with exceptional efficiency and longevity. The containerized design ensures rapid deployment and minimal on-site work, while the advanced thermal management and dust protection features guarantee optimal performance in challenging environmental conditions.
