High-quality Battery Cells from EVE/REPT Energy × 87% Overall System Efficiency × 8000 Cycles Life | Your Customized Energy Storage Expert

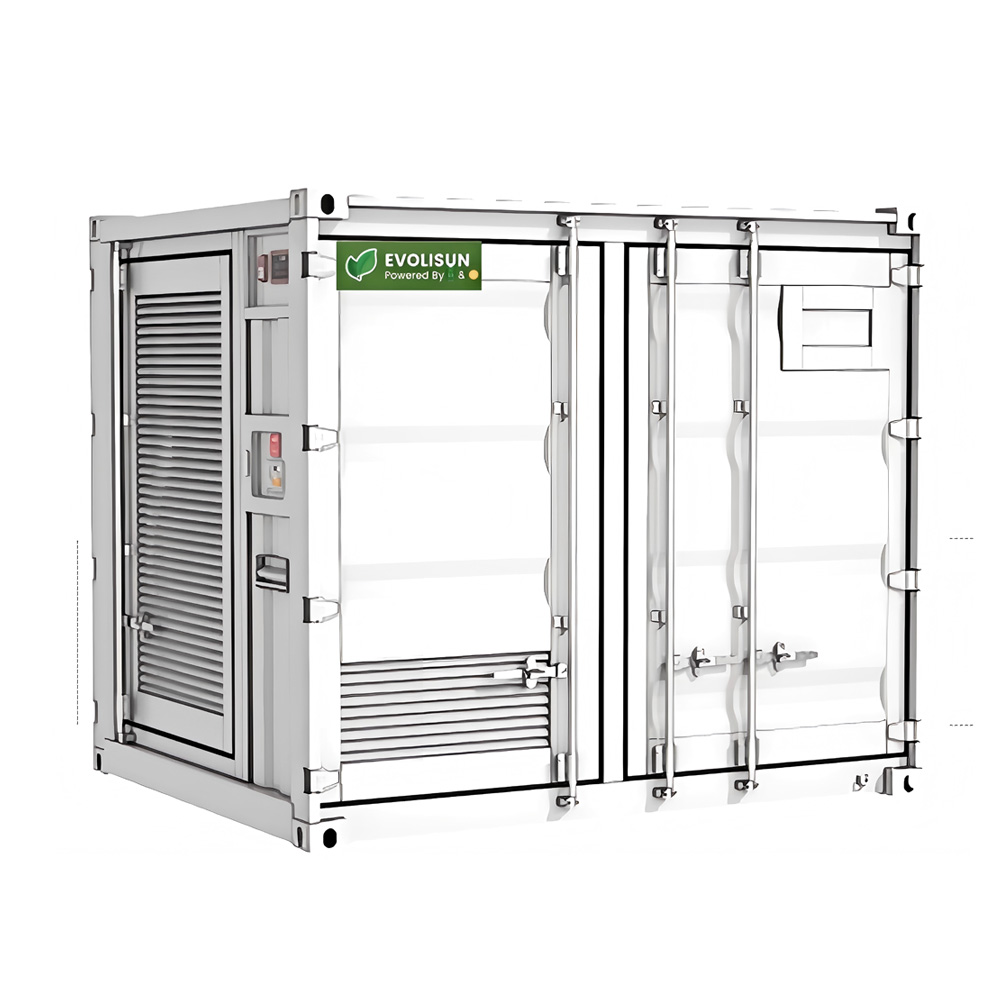

In today's era of increasingly complex industrial and commercial energy storage demands, single standard products can no longer meet all scenarios. We officially launch the new generation 10FT industrial & commercial all-in-one cabinet - featuring 1560kWh ultra-large capacity and 125kW rated power as core parameters, integrating high-performance battery cells from EVE Energy/REPT Energy with active safety technology. Exclusively designed for diverse needs such as short-time uninterrupted systems, parallel cabinet expansion, and remote control.
【Core Advantage 1: Ultra-large Capacity, Ultimate Integration】
Storing 1560kWh massive electrical energy in a 10FT standard space (L2991×W2438×H2591mm) with total weight controlled within 20 tons, achieving industry-leading floor efficiency. Supporting multi-unit parallel connection, it can flexibly expand capacity according to load growth, easily meeting the differentiated needs from small and medium-sized industrial and commercial users to large parks. Standing by 24/7, it can respond to peak-valley arbitrage, demand management and other strategies at any time.
【Core Advantage 2: Top-tier Battery Cells, Ultra-long Service Life】
Equipped with high-quality LFP battery cells from EVE Energy/REPT Energy with cycle life ≥ 8000 times, significantly reducing the levelized cost of electricity throughout the life cycle. Cooperating with the intelligent liquid cooling temperature control system, the temperature difference between battery cells is strictly controlled at ≤ 5℃ to ensure the long-term stable operation of the system. With a system efficiency of up to 87% and lower energy loss, every kilowatt-hour of electricity is put to good use.
【Core Advantage 3: Active Safety, Early Warning】
Safety is not only about passive protection, but more about active identification. The cabinet is equipped with an aerosol fire protection system and innovatively integrates an advanced active identification system, which can issue early warnings and intervene in treatment at the embryonic stage of thermal runaway. Combined with IP54 protection grade, it is immune to wind, rain and sand dust, ensuring ultimate safety redundancy in outdoor environments.
【Core Advantage 4: Flexible Customization, Intelligent Operation and Maintenance】
• Functional Customization: According to your business scenarios, EMS strategies, communication interfaces and grid-connection logic can be customized to perfectly match various complex needs.
• Remote Control: Built-in local EMS, supporting remote monitoring and dispatching through cloud platform. No matter where you are, you can grasp equipment status and revenue data in real time.
• Uninterrupted System Adaptation: Optimized response speed exclusively for short-time uninterrupted systems, quickly connecting in case of power grid fluctuations to ensure continuous power supply for critical loads. An ideal backup partner for data centers, precision manufacturing, hospitals and other scenarios.
Technical Parameters at a Glance:
Battery Cell Brand: EVE Energy / REPT Energy
System Capacity: 1560kWh | Rated Power: 125kW
Cycle Life: ≥ 8000 times | System Efficiency: 87%
Temperature Difference Control: ≤ 5℃ | Protection Grade: IP54
Physical Dimensions: 2991×2438×2591mm | Total Weight: <20T
Safety Configuration: Aerosol Fire Protection + Advanced Active Identification System
Certification Status: CE Certification in Progress
Application Scenarios:
• Short-time Backup Power: Data centers, hospitals, precision manufacturing and other scenarios with high reliability requirements.
• Parallel Cabinet Expansion: Industrial parks, PV energy storage charging stations, gradually increasing capacity according to demand.
• Peak-Valley Arbitrage: Reducing electricity costs and improving economic benefits by utilizing electricity price differences.
• Distribution Transformer Area Energy Storage: Delaying power grid upgrade investment and improving power quality.
Customize your exclusive solution and start the high-efficiency energy storage era immediately!
【Xiamen Evolisun New Energy Technology Co., Ltd.】—— Empowering your energy future with leading technology and flexible customization.
