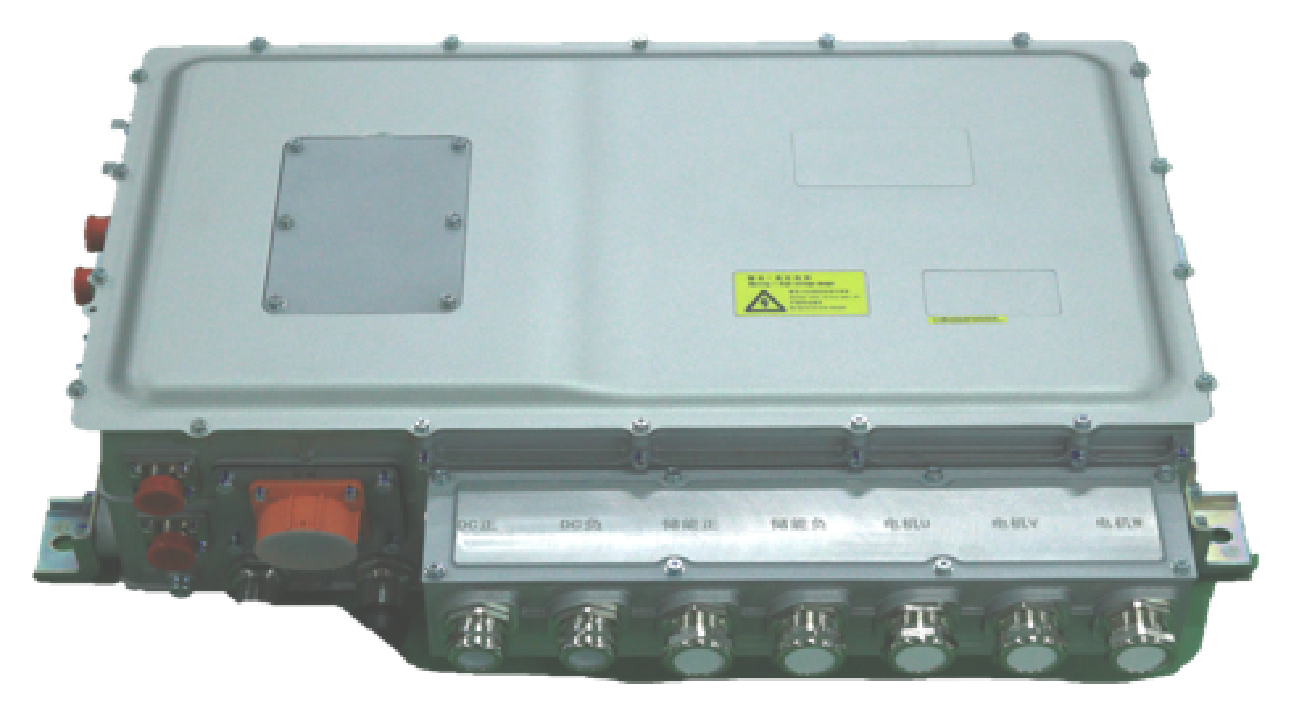

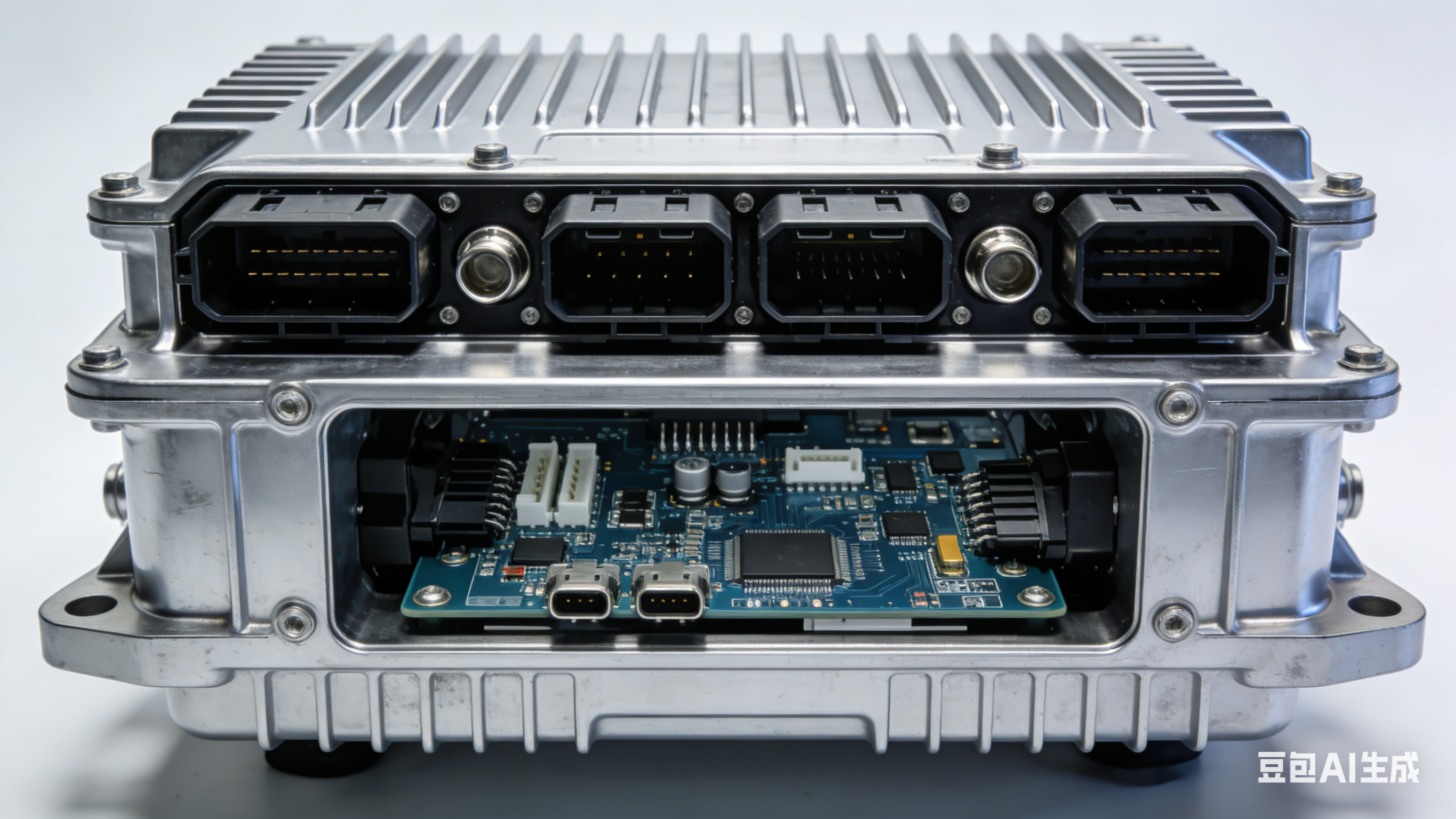

EVO all-in-one MCU System for EV

BrandEvolisun
Product originChina
Delivery time45-50 days
Supply capacity1000 sets per month

The Evolisun multi-in-one electric control system features high integration, small size and light weight. It effectively reduces the complexity of vehicle wiring, improves space utilization, and enhances system reliability and stability. With easy installation and maintenance, it helps lower the overall vehicle cost. High integration, high safety, long cycle life, suitable for various electric vehicles.

DCAC inverter Product model

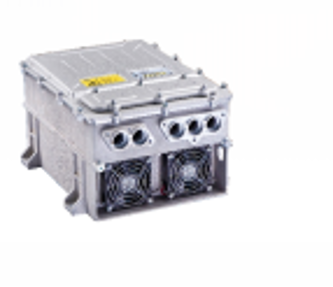

MCU Motor control unit DCAC inverter

Item	Parameter
Item	EVO-2D30	EVO-4D60	EVO-2D60	EVO-4D110	EVO-2D90	EVO-4D185	EVO-2D160	EVO-4D355
Size/mm	358290195	358290195	336314118	336314118	490384133	490384133	556540183	556540183
Weight/kg	9.5	9.5	8.5	8.5	16.5	16.5	28	28
Input voltage/V(DC)	200-500	350-750	200-500	350-750	200-500	350-750	200-500	350-750
Rated output/A	110	110	210	210	350	350	600	600
Peak output/A	150	150	350	350	525	525	900	900
Rated power/kW	30	60	60	110	90	185	160	355
Output frequency	0-800Hz	0-800Hz	0-800Hz	0-800Hz	0-800Hz	0-800Hz	0-800Hz	0-800Hz
Cooling way	Air	Air	Liquid	Liquid	Liquid	Liquid	Liquid	Liquid
Note: DCAC motor controllers are used to control on-board oil pump motors, air pump motors, travel motors, etc

3-In-1 Inverter Model

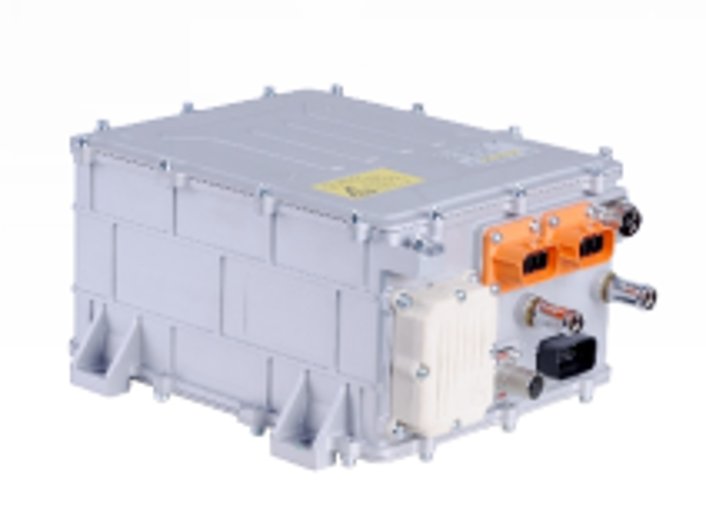

MCU

3-In-1 integrated power supply is suitable for various special logistics vehicles and 6m to 12m urban buses, and can be integrated with OBC（on-board charger）.

Item	Parameter
Working voltage	350V~750V
Low voltage	24V
Size	390mm×294mm×185mm
Rated efficiency	≥98%
Cooling way	Liquid
IP	IP68
DC/DC peak power	3kW/6.6 kW
DC/ACpeak power	7.5kW/12 kW

About Us 3-In-1 MCU Model

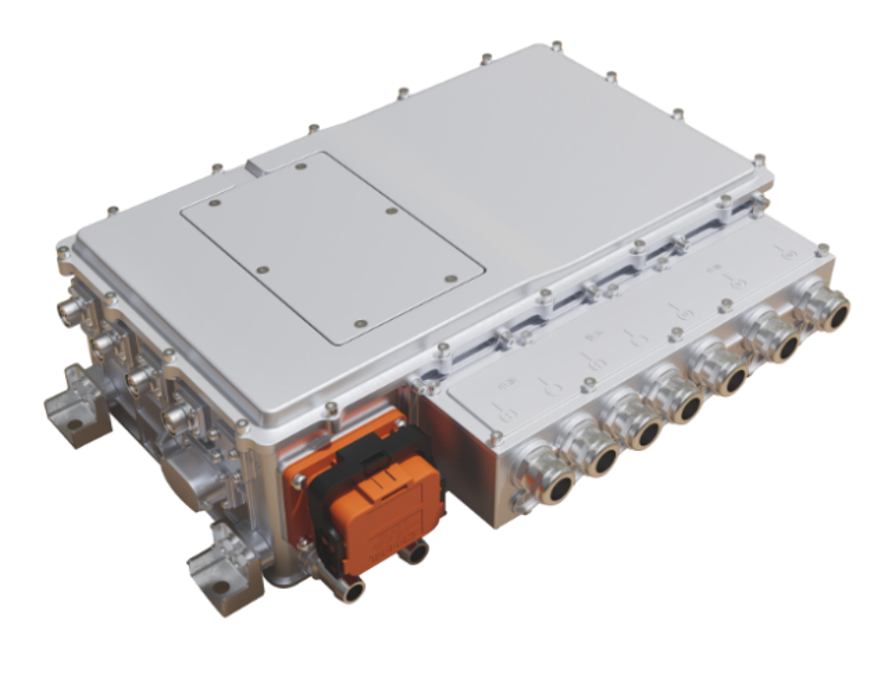

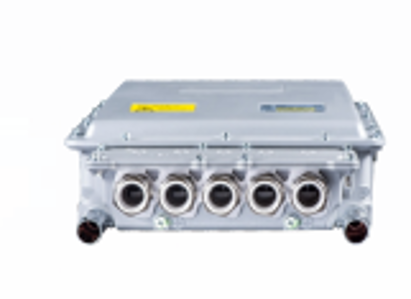

Motor control unit

4-in-1 Motor control unit is suitable for various types of special logistics vehicles and 6 to 12 meters urban buses, and can be integrated with OBC

Item	Parameter
Working voltage	250V~450V
Low voltage	12V
Size	568mm×411mm×162mm
Rated efficiency	≥98%
Cooling way	Liquid
IP	IP68
MCU peak power	45kW/75 kW,output 160/320A
DCDC power	1.5kW/12V
PDU	Slow charging, fast charging, defrosting, air conditioning, PTC, etc.

4-In-1 Power system

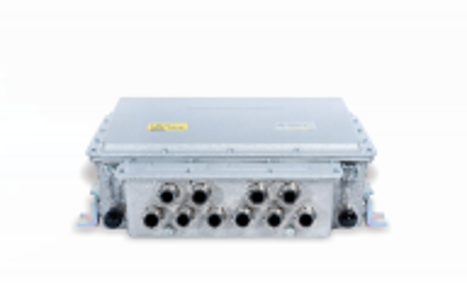

DCAC inverter

4-in-1 unit is mainly used for pickup trucks, logistics vehicles and medium-sized buses.

Item	Parameter
Working voltage	250V~450V
Low voltage	9V~16V
Size	680mm×530mm×190mm
Rated efficiency	≥98%
Cooling way	Liquid
IP	IP68
MCU peak power	120 kW,output 160/320A
DCDC Peak power	3kW
OBC Peak power	6.6kW
PDU	Slow charging, fast charging, defrosting, air conditioning, PTC, etc.
Auxiliary functions	Relay Adhesion Detection
