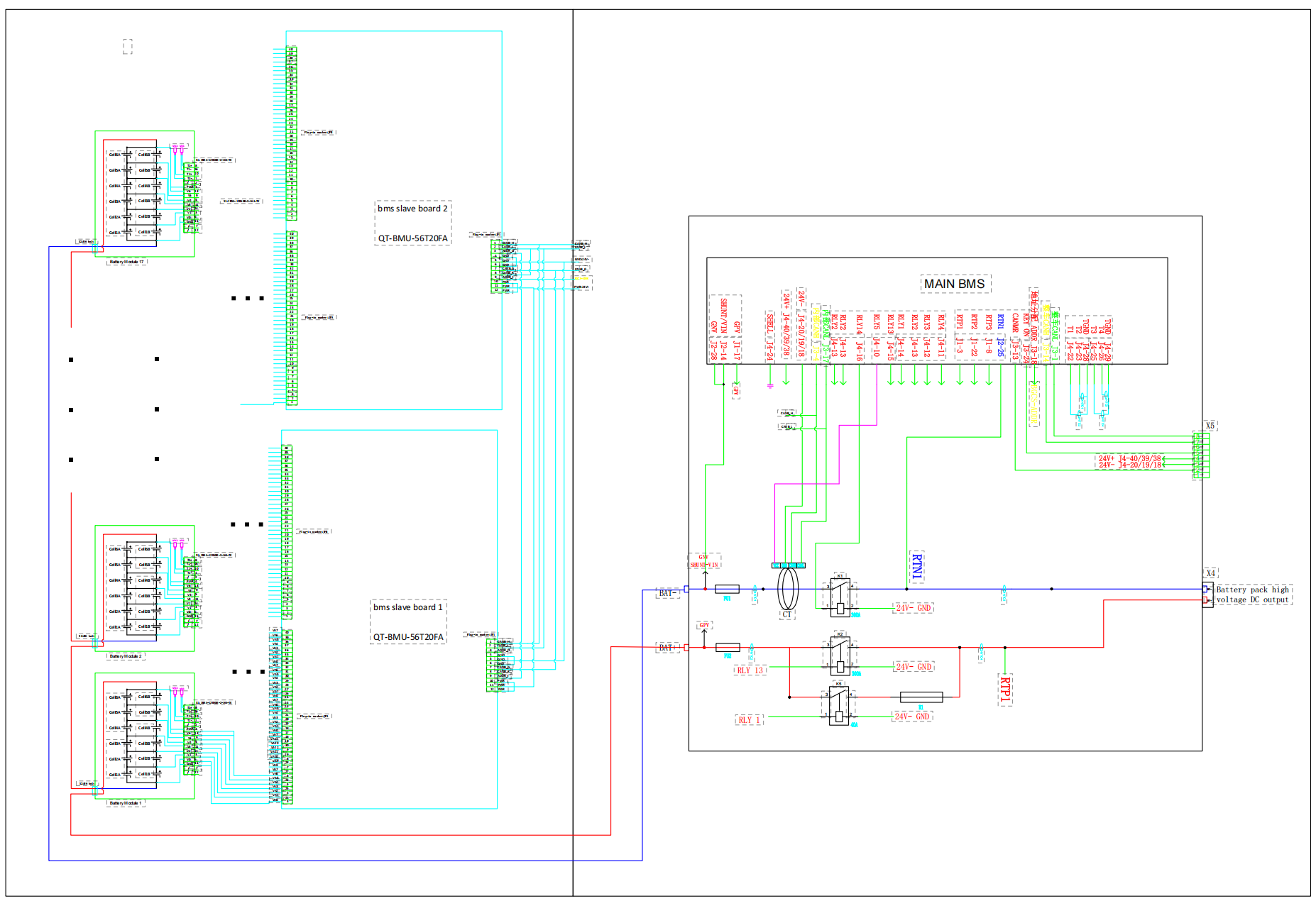

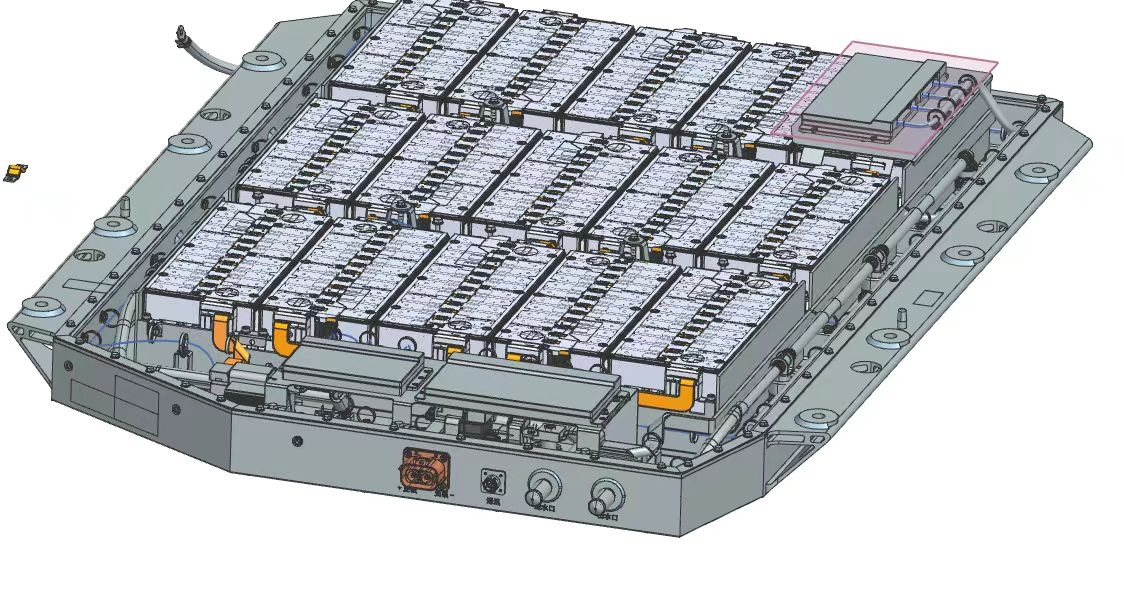

System architecture and functions

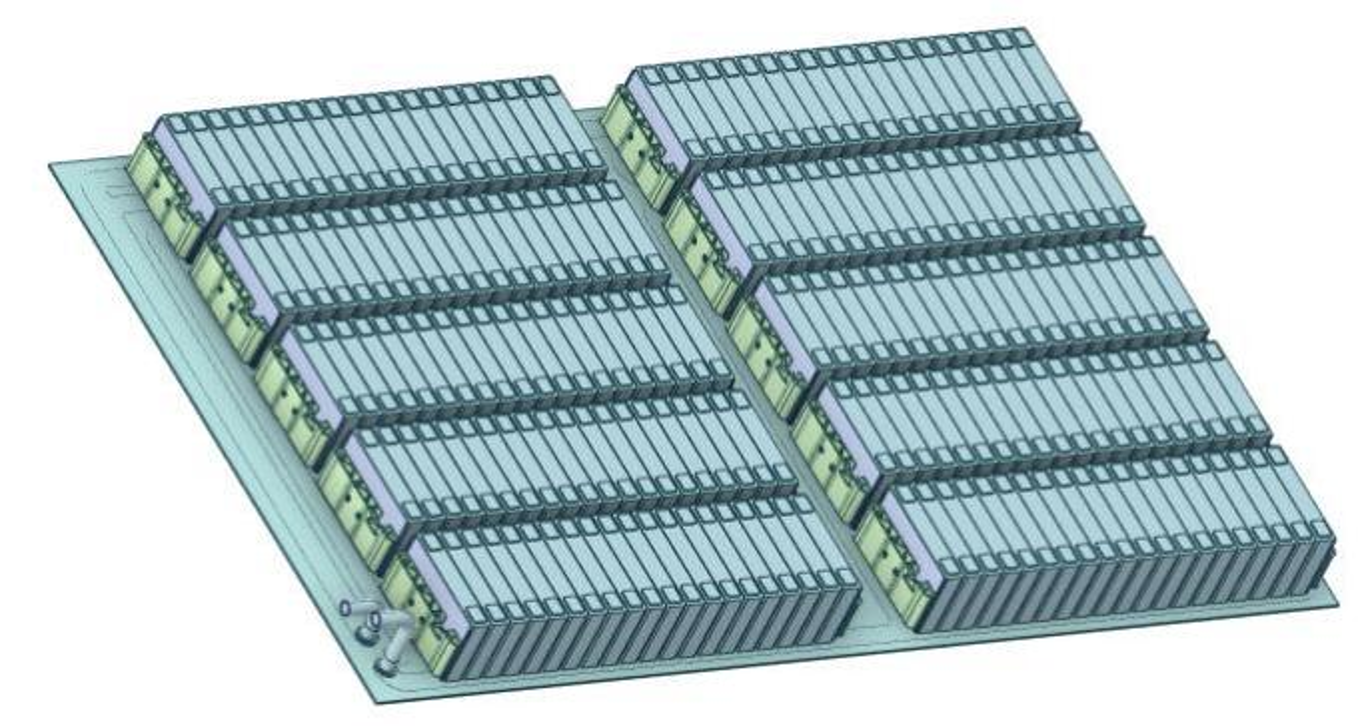

High energy density: Longer cruising range under the same volume or weight, ideal for passenger vehicles, energy storage and portable devices.
High voltage platform: Higher single-cell voltage, higher system efficiency, requiring fewer series-parallel connections for high-voltage applications.
Excellent low-temperature performance: Better capacity retention at low temperatures than LFP batteries, more stable in cold regions.
Good rate performance: Fast charging and discharging, supporting quick charge and high-power output.
Balanced cycle life: Well-balanced performance in cycle life, consistency and stability.
Strong adaptability: Widely used in new energy vehicles, high-end energy storage, portable power stations, export products and other scenarios.

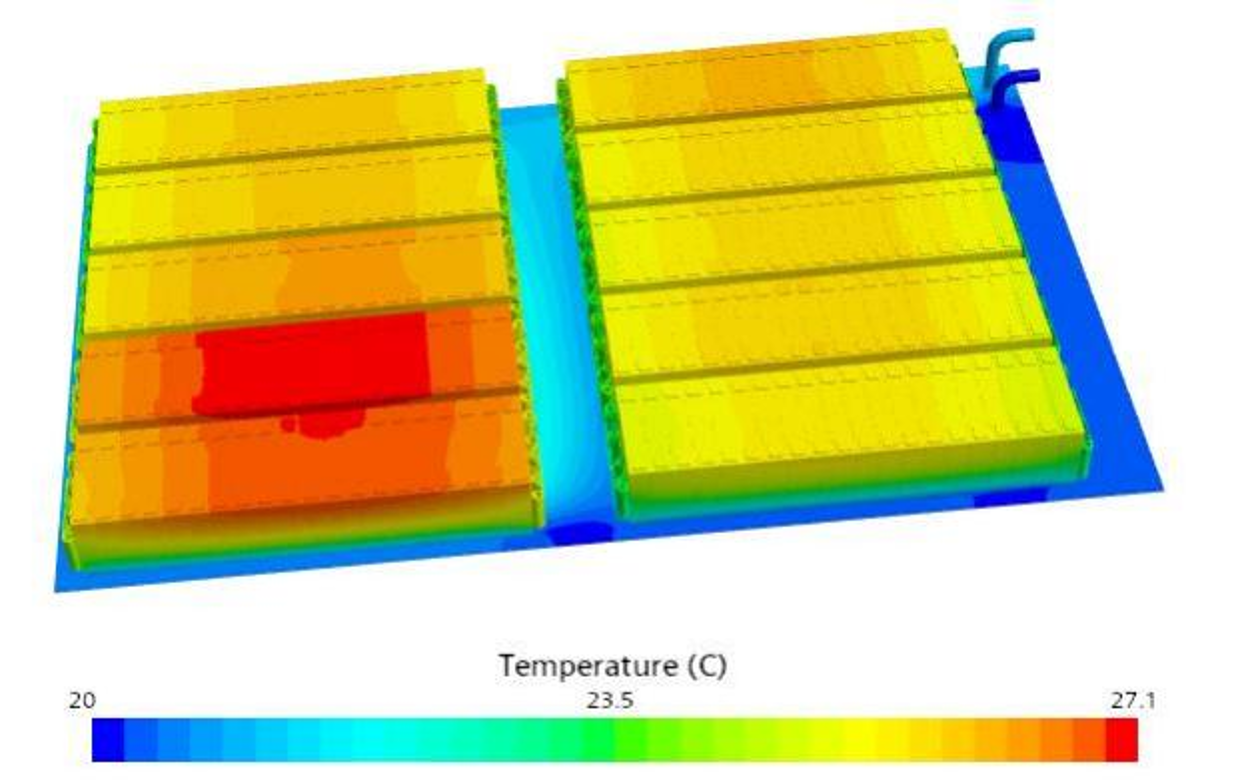

1.Precise temperature control with small temperature difference
2.Strong heat dissipation for fast charging and high-power discharge
3.Rapid heating at low temperature, improving range and charging efficiency
4.Reduce battery degradation and extend cycle life
5.Improve safety and reduce thermal runaway risk
6.Suitable for high energy density & highly integrated battery packs

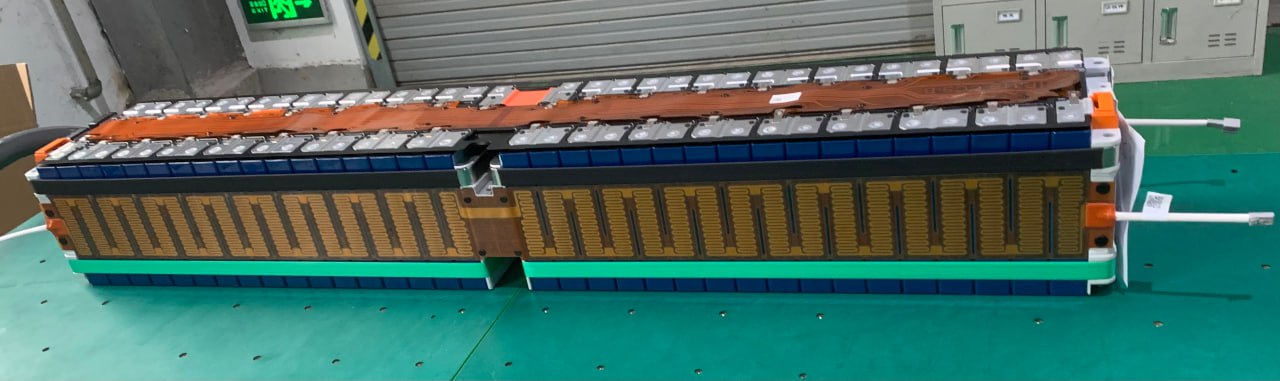

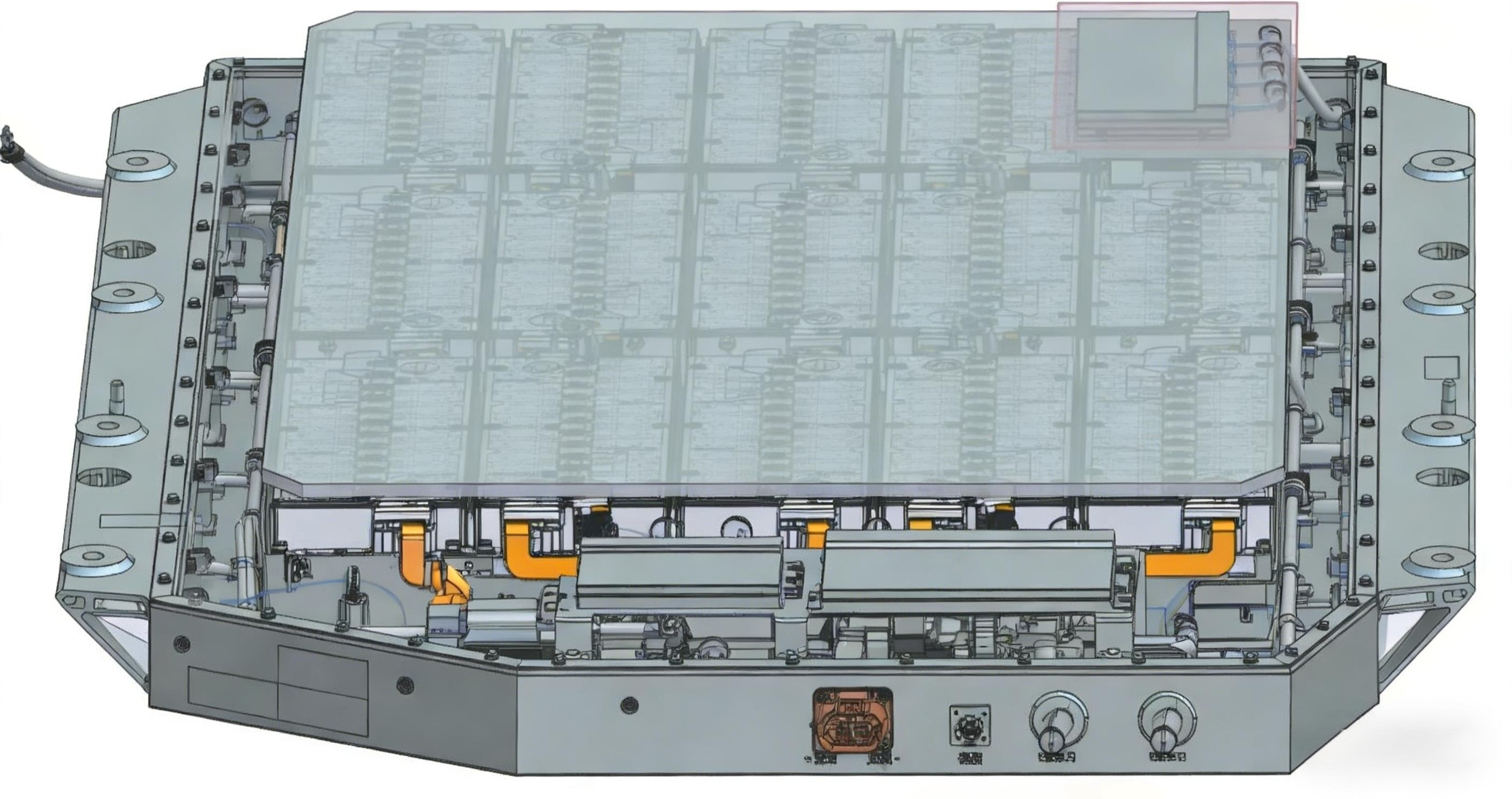

System Module
The Battery Management System (BMS) is the "intelligent brain" of an energy storage system, dedicated to comprehensive and precise management of the battery pack. It continuously monitors key parameters such as battery voltage, current, and temperature to accurately estimate the battery's state of charge (SOC), ensuring operational safety and providing fault warnings. The BMS employs advanced battery balancing technology to minimize performance differences between individual battery cells, extending the overall lifespan of the battery system. Furthermore, the BMS works in conjunction with the power conversion system and energy management system to optimize charging and discharging strategies, improving overall efficiency and reliability. As a critical component ensuring safety and performance, the BMS is an indispensable core component of electrochemical energy storage systems.
High-voltage power distributionSafely distribute high voltage from the battery pack to loads such as MCU, OBC, DC-DC, and air conditioning compressor.
Switch controlControl high-voltage circuit on/off and emergency disconnect via contactors.
Overcurrent & short-circuit protectionEquipped with fuses to cut off the circuit under short circuit or overload, protecting the battery and components.
Pre-charge controlComplete pre-charging to avoid inrush current damage during power-on.
High-voltage detection & interlockMonitor high-voltage status and ensure safety during operation and maintenance.
Current & voltage samplingProvide real-time signals for BMS to implement control and protection.
High standardization & high compatibility
Stable and reliable structure
Excellent thermal management performance
Mature supply chain & cost-effective
Easy for maintenance and replacement
BEV & PHEV passenger vehicles
Mainstream European & global EV platforms
Power and energy storage systems

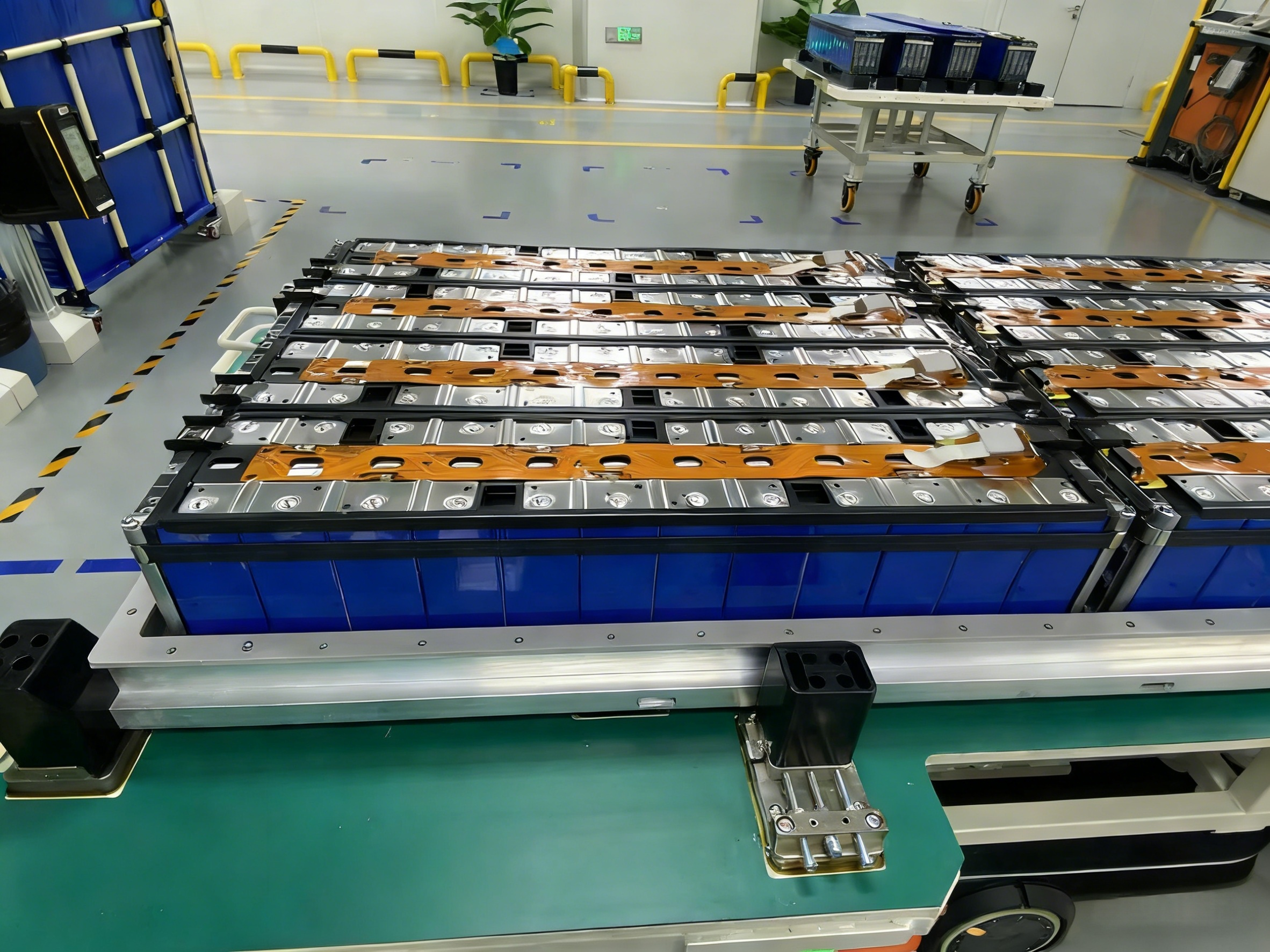

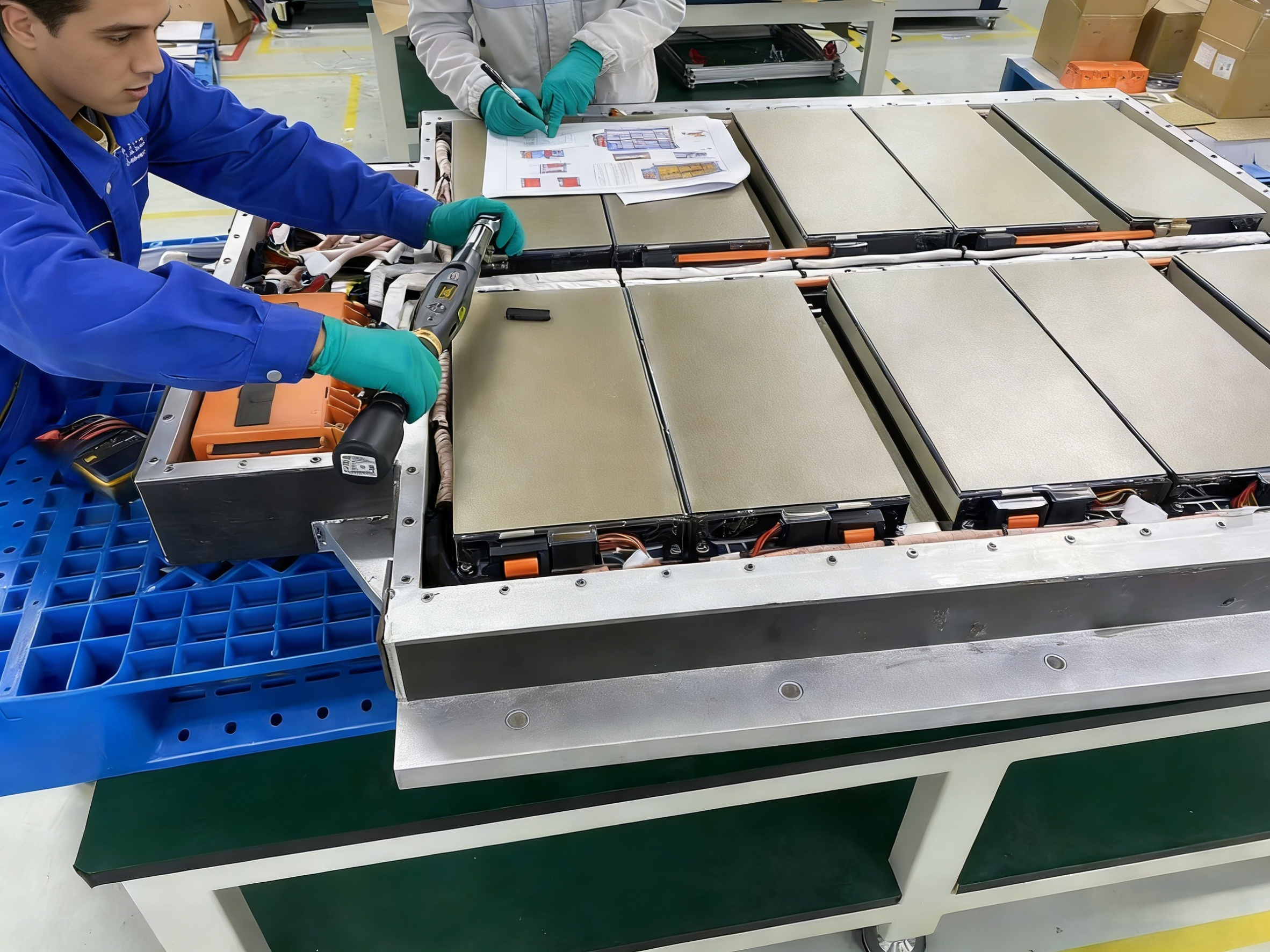

Prototype Assembly
Mass production
System Technical Specification
Serial number | Name | Parameter | Remarks |
1 | Total voltage: | 350V or 720V | |
2 | Total capacity: | 60Ah-116Ah | |
3 | Total energy: | 43kWh-83KWh | |
4 | Weight: | ≤300kg/≤500kg | |
5 | Dimensions: | 1279mm*1229mm*156mm/* |
Application projects

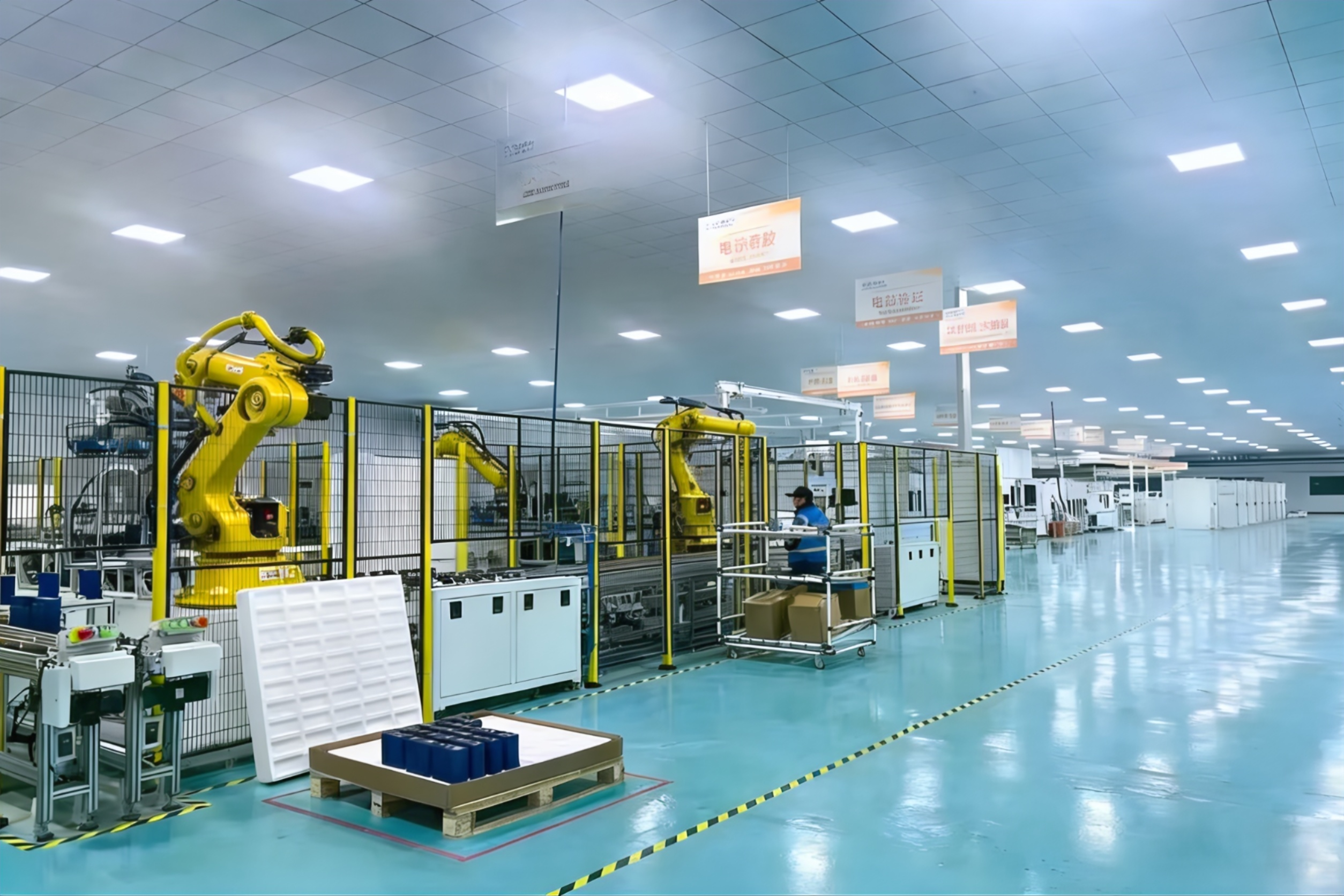

Evolisun battery pack production line
