System architecture and functions
1.High safety, excellent thermal stability, not easy to catch fire
2.Long cycle life, low full-life cost
3.High reliability, wide working temperature range
4.Built-in BMS for overcharge, over-discharge, over-current and short-circuit protection
5.Good low-temperature resistance with optional heating function
6.Compact structure, light weight, easy to install and replace
7.Suitable for low-speed electric vehicles, logistics vehicles and scooters

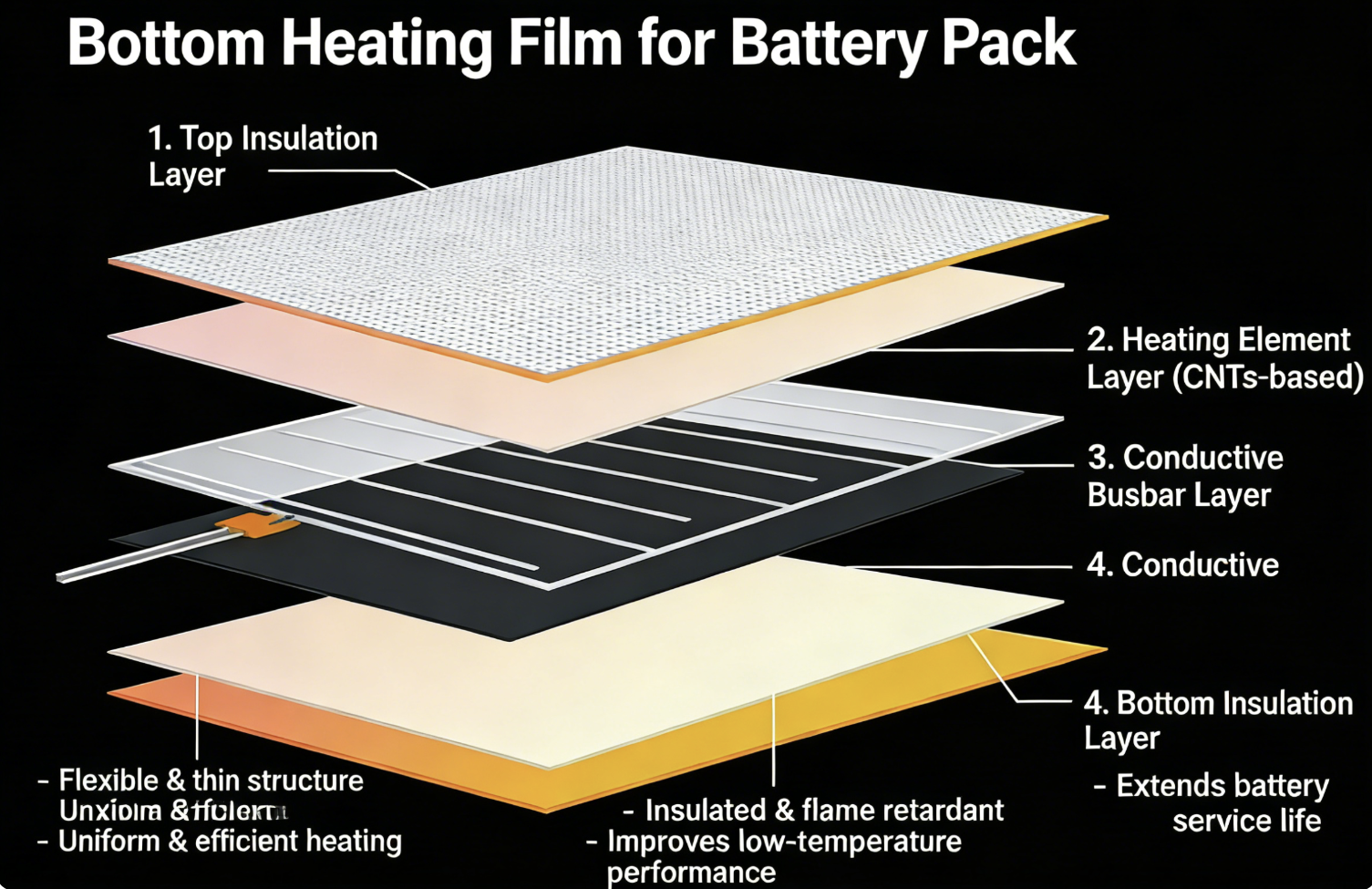

Uniform heating, fast temperature rise
Safe and reliable, with overheat protection
Light and thin, easy to install inside the battery pack
Low power consumption, high efficiency
Improves low-temperature charging/discharging performance
Extends battery life and stability
System Module
The Battery Management System (BMS) is the "intelligent brain" of an energy storage system, dedicated to comprehensive and precise management of the battery pack. It continuously monitors key parameters such as battery voltage, current, and temperature to accurately estimate the battery's state of charge (SOC), ensuring operational safety and providing fault warnings. The BMS employs advanced battery balancing technology to minimize performance differences between individual battery cells, extending the overall lifespan of the battery system. Furthermore, the BMS works in conjunction with the power conversion system and energy management system to optimize charging and discharging strategies, improving overall efficiency and reliability. As a critical component ensuring safety and performance, the BMS is an indispensable core component of electrochemical energy storage systems.
High-voltage power distributionSafely distribute high voltage from the battery pack to loads such as MCU, OBC, DC-DC, and air conditioning compressor.
Switch controlControl high-voltage circuit on/off and emergency disconnect via contactors.
Overcurrent & short-circuit protectionEquipped with fuses to cut off the circuit under short circuit or overload, protecting the battery and components.
Pre-charge controlComplete pre-charging to avoid inrush current damage during power-on.
High-voltage detection & interlockMonitor high-voltage status and ensure safety during operation and maintenance.
Current & voltage samplingProvide real-time signals for BMS to implement control and protection.
High standardization & high compatibility
Stable and reliable structure
Excellent thermal management performance
Mature supply chain & cost-effective
Easy for maintenance and replacement
BEV & PHEV passenger vehicles
Mainstream European & global EV platforms
Power and energy storage systems
System Technical Specification
Serial number | Name | Parameter | Remarks |
1 | Total voltage: | 76.8V |
|
2 | Total capacity: | 300Ah |
|
3 | Total energy: | 23.5kWh |
|
4 | Weight: | ≤100kg |
|
5 | Dimensions: | 1100mm*410mm*190mm |

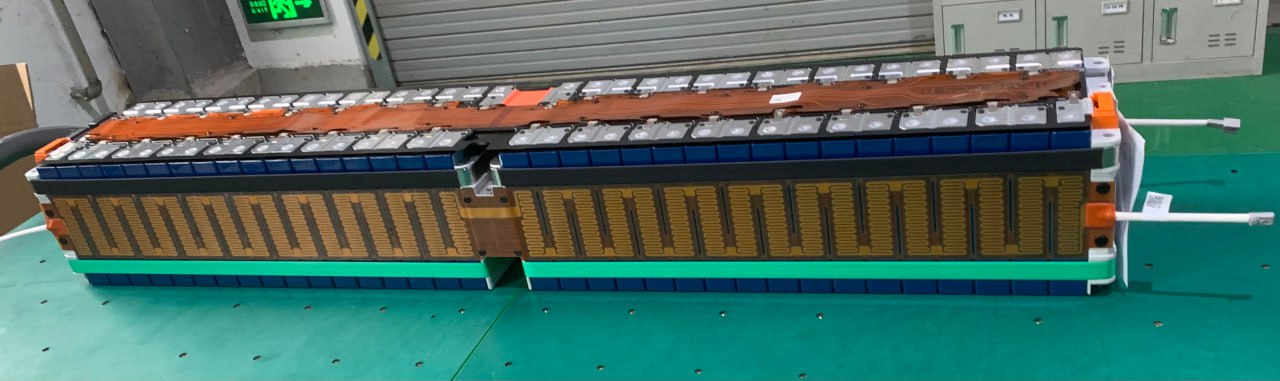

Evolisun battery pack production line
