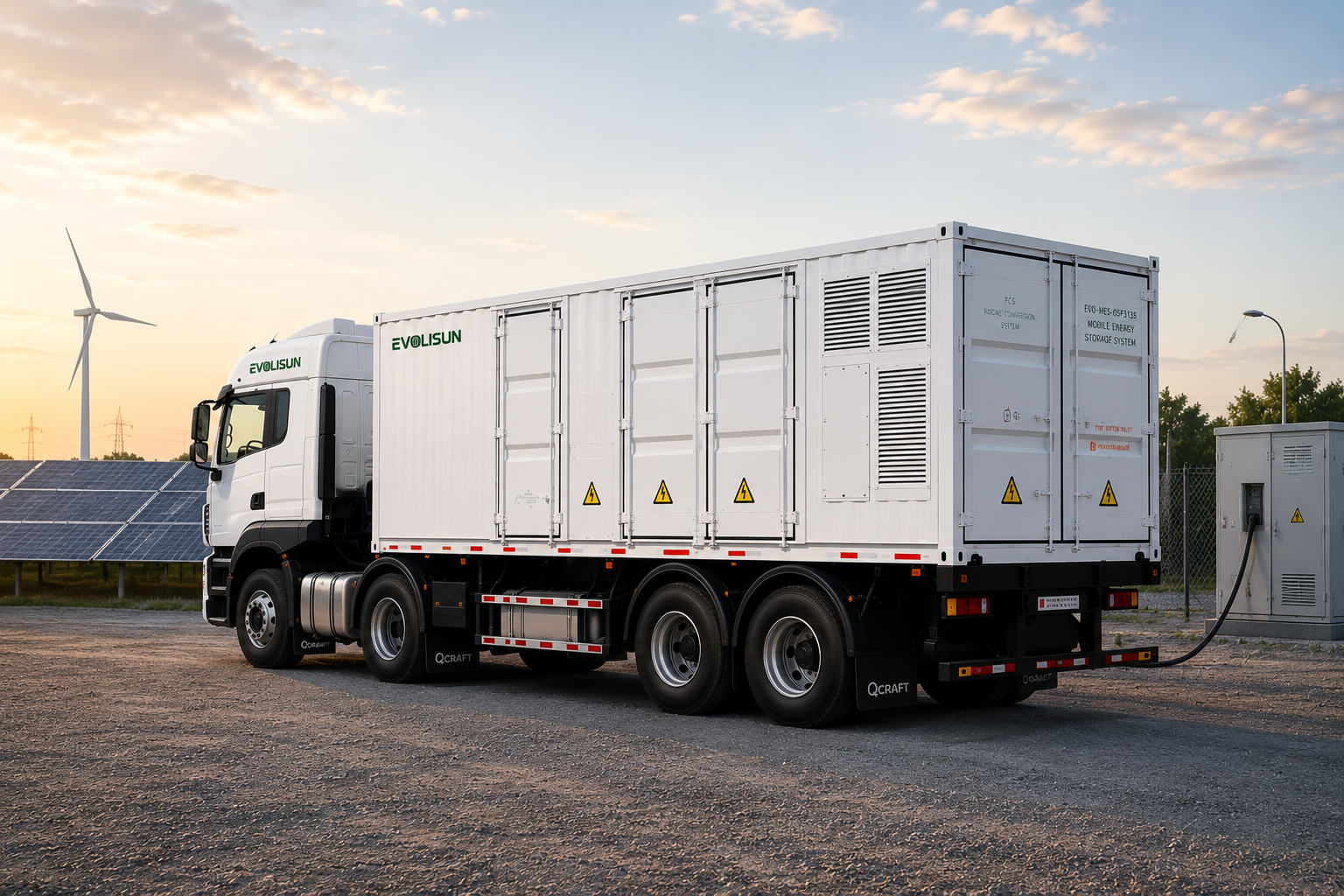

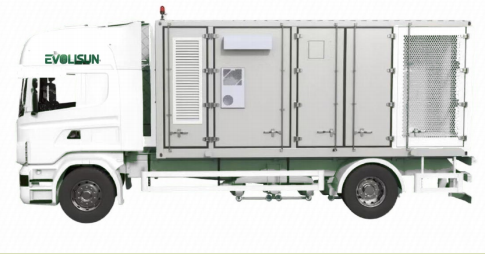

The Evolisun EVO-MES-05P3135 is a high-power mobile energy storage system combining automotive-grade 314 Ah prismatic lithium iron phosphate (LFP) cells with modular power conversion system (PCS) technology. With a total storage capacity of 3.135 MWh and a rated output power of 1.5 MW, the system is purpose-built for vehicle-mounted mobile deployments, delivering stable 400 V three-phase four-wire AC power. It is ideally suited for off-grid applications including remote areas without utility access, emergency response operations, and large-scale outdoor worksites.
✓ Automotive-grade 314 Ah LFP prismatic cells - high cell-to-cell consistency, low internal resistance, and excellent thermal dissipation. Each cell has passed automotive-grade vibration and shock qualification tests, fully meeting the demanding requirements of vehicle-mounted mobile environments.
✓ Modular string-inverter architecture - each PCS independently manages a dedicated battery string, completely eliminating the inter-string circulating currents inherent in traditional centralised topologies, and significantly improving both usable capacity and cycle life.
✓ Superior V/F control capability - supports 100% three-phase unbalanced loads, fully compatible with 400 V off-grid three-phase four-wire output configurations.
✓ Three-tier BMS architecture with comprehensive multi-layer protection: over-voltage, under-voltage, over-current, short-circuit, overtemperature, under-temperature, and insulation fault detection - ensuring safe and reliable operation under all conditions.
✓ Intelligent liquid cooling system - approximately 30% more energy-efficient than conventional forced-air cooling; maximum temperature differential across the megawatt-class battery array is limited to just 3–7 °C.
✓ Automatic fire detection and suppression system with audible and visual alarms, fire hydrant connection points, and dedicated water-based firefighting pipework; explosion-proof lighting; and an electronic access control system.
✓ Remote monitoring system - operators can track real-time operating data of all battery packs within the combiner cabinet from a central control room.
| Category | Parameter | Specification |
|---|---|---|
| System Overview | Model Number | EVO-MES-05P3135 |
| Rated Energy Capacity | 3.135 MWh | |
| Rated Output Power | 1.5 MW | |
| Peak Power | 1.65 MW | |
| Battery Rated Voltage | 832 V DC | |
| AC Output Voltage | 400 V AC ±10% (Three-Phase Four-Wire) | |
| Operating Mode | Off-Grid Operation | |
| Cooling Method | Intelligent Liquid Cooling | |
| Protection Rating | IP55 | |
| Battery System | Cell Chemistry | Lithium Iron Phosphate (LFP) |
| Cell Specification | 3.2 V / 314 Ah | |
| System Configuration | 12 Strings in Parallel (260S1P per String) | |
| Energy per String | 261.248 kWh | |
| Cycle Life | ≥ 6,000 cycles (0.5C, 25 °C, 80% DOD) | |
| PCS System | Architecture Type | Modular String-Inverter (One PCS per String) |
| Rated Power | 1.5 MW (125 kW × 12 units in parallel) | |
| Conversion Efficiency | ≥ 98.5% | |
| Overload Capability | 110% Continuous Operation | |
| Physical Params | Overall Dimensions | Custom (adapted to vehicle chassis) |
| System Weight | approx. 30 t | |
| Operating Temperature | −25 °C ~ +55 °C |
